# EasyReinforcementLearning **Repository Path**: mirrors_alibaba/EasyReinforcementLearning ## Basic Information - **Project Name**: EasyReinforcementLearning - **Description**: EasyRL: An easy-to-use and comprehensive reinforcement learning package. - **Primary Language**: Unknown - **License**: Apache-2.0 - **Default Branch**: master - **Homepage**: None - **GVP Project**: No ## Statistics - **Stars**: 1 - **Forks**: 1 - **Created**: 2022-02-26 - **Last Updated**: 2025-10-11 ## Categories & Tags **Categories**: Uncategorized **Tags**: None ## README # EasyReinforcementLearning (EasyRL) ![](https://img.shields.io/badge/language-python-blue.svg) ![](https://img.shields.io/badge/license-Apache-000000.svg) ## Overview In recent years, we have witnessed many impressive progresses of reinforcement learning (RL) including AlphaGo, OpenAI Five, etc. As for real-world applications, we have successfully applied RL to many E-commerce scenarios like session-based learning to rank, multi-turn conversational agent, etc. Compared with the supervised learning paradigm, the interactive nature of RL raises the bar of its application, as the practitioners have to - implement the sophisticated learning algorithm rather than simply choose one kind of loss, model, and optimizer from TensorFlow (TF)/PyTorch - handle the communication of both data (states, actions, rewards, etc.) and model parameters when distributed setting is considered This repo provides the implementations of many widely-adopted RL algorithms (DQN, PPO, ES, etc.) in both standalone and distributed modes, so that the practitioners are enabled to apply these algorithms with the least effort. We have carefully designed and iteratively refactored our interfaces, offering our users for customizing their own RL algorithms in convenience. In the following, we first present a "quick start" example. Then we describe the features of this repo in detail and empirically evaluate EasyRL. ## Quick Start EasyRL can be easily installed by: ```bash git clone https://github.com/alibaba/EasyRL.git && cd EasyRL pip install -e . --verbose ``` We have provided many well-tuned examples (see `demo/`). For instance, users can play [Pong](https://gym.openai.com/envs/Pong-v0/) with DQN by ```bash python demo/run_dqn_on_pong.py ``` where we have carefully tuned the hyper-parameters, so that this game Pong is expected to be solved within around 60 minutes (depending on your hardware situations).

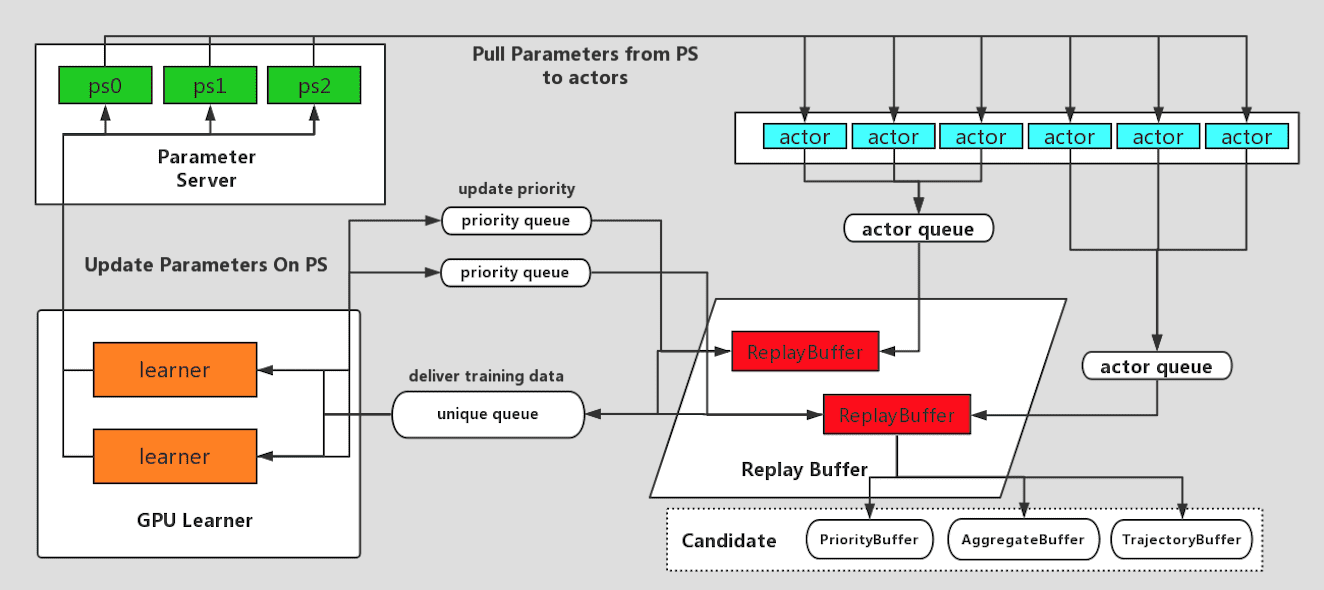

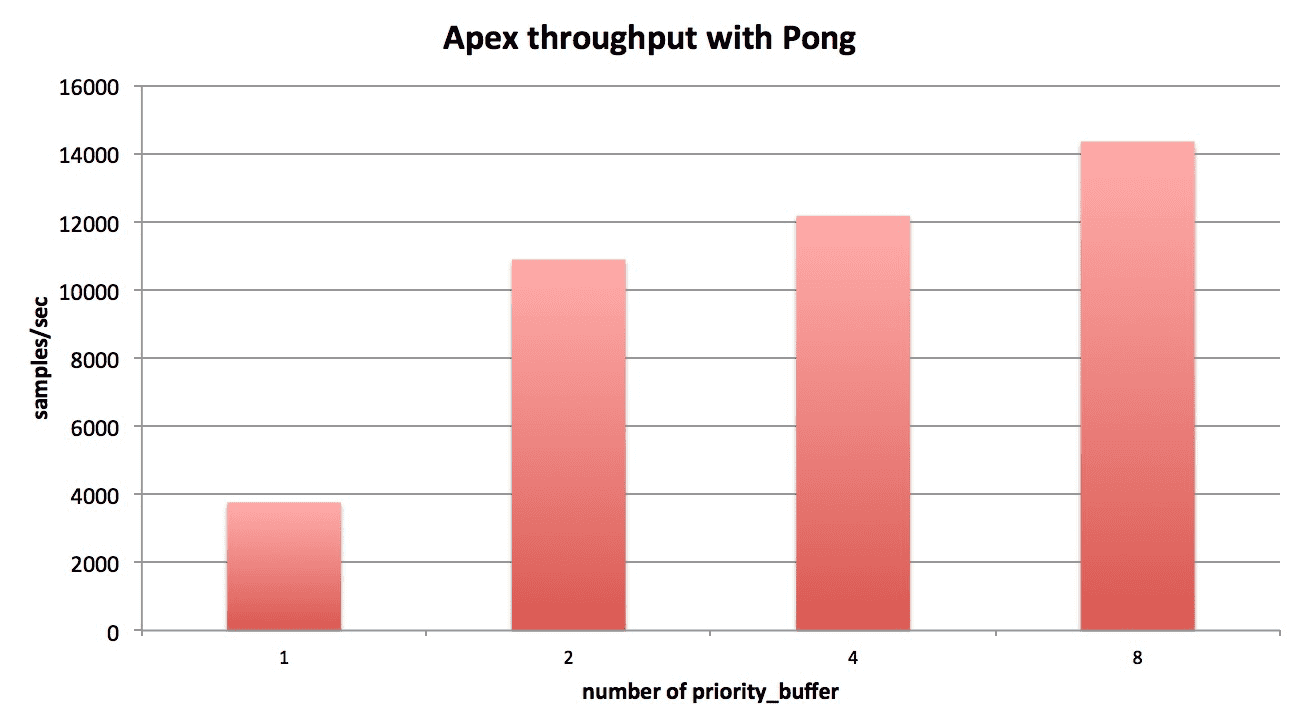

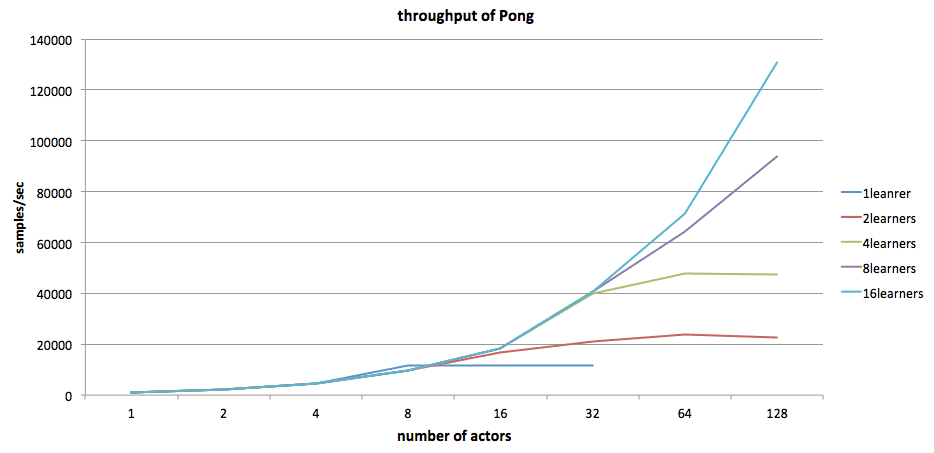

It is convenient for users to try other hyper-parameters by modifying the `MODEL_CONFIG` dict, `AGENT_CONFIG` dict, or even the `MyDQNModel` class by themselves. Here is a more comprehensive **[document](https://alibabapai.github.io/easy_rl_doc/)** (currently, there is a theme-related issue, we shall fix it ASAP). ## Ease of Use We implemented EasyRL purely based on TF. Both the computation and the communication (once in a distributed mode) are expressed via the TensorFlow computation graph. Distinguished from most existing RL packages that have utilized MPI, Ray, or NCCL, EasyRL can be easily studied, integrated into your application, or migrated among various platforms. In addition, we provide RL-oriented summary functionalities. Specifically, users are allowed to summarize any TF op in interests by simply specifying in a config file, without caring about how to coordinate the different summary ops with the different ops to be `session.run`, say that users are saved from overriding summary hooks. ## Scalability The interactive nature of RL poses a stong need and motivation of rolling out a large number of trajectories in parallel. A straightforward idea is to replicate the agent as many *actors* where each interacts with its corresponding environment(s) simultaneously. On the other hand, one or more *learners* are desgined to update model parameters w.r.t. the collected trajectories. This idea is first formularized as Gorilla [Nair et al., 2015] and extended into variations like ApeX [Horgan et al., 2018] and Impala [Espeholt et al., 2018]. The *actor-learner* architecture of EasyRL is designed as the following figure presents: ![](https://img.alicdn.com/tfs/TB1zw7vq7Y2gK0jSZFgXXc5OFXa-1324-590.png) Conceptually, we categorize involved processes into four roles: - *Actor*: periodically pull the latest model parameters, interact with its environment(s), and push the generated trajectories to *buffer* processes. - *Learner*: update model parameters once acquired training samples from the *buffer* processes. - *Buffer*: maintain the training samples including postprocessing collected trajectories, replaying existing samples, and updating the importances of samples if necessary. - *PS*: hold the model parameters for pull/push operations from other processes. Taking distributed-PPO and ApeX for examples, the former requires to synchronize between *actors* and *learners* as it is an on-policy algorithm, while the later requires *buffers* to replay existing samples as it is an off-policy algorithms. Both of them neither need processes of any other role nor change the responsibility of pre-defined roles, demonstrating the expressiveness of our architecture. We have implemented distributed-PPO [Schulman et al., 2017], ApeX, Impala, evolutional strategy (ES) and so on. Actually, users are enabled to express their own distributed RL algorithms in such an unified view, tackling large-scale problems with almost the same development effort as that of playing CartPole. ## Modularity EasyRL not only provides a configurable, callable, and reliable RL algorithm suites, but also encourages users to develop their customized algorithms upon our interfaces. The whole module mainly consists of three parts: the *agent* classes (see `easy_rl/agents`), the *model* classes (see `easy_rl/models`), and the utilities (see `easy_rl/utils`). The *agent* classes expose the methods for acting, updating and communication. The *model* classes construct the computation graph to provide required TF placeholders and TF ops according to which kind of *agent* they are plugged in. Existing *agent* classes are organized as follow. No matter what kind of *model* is adopted, `Agent` provide unified interfaces for runing RL algorithms in a standalone mode. As for distributed setting, `ActorLearner` defines the roles; `SyncAgent` and `AsyncAgent` specialize the sync/async features; and their subclasses further specialize concrete algorithms. ![](https://img.alicdn.com/tfs/TB1d5.vq7Y2gK0jSZFgXXc5OFXa-1486-348.png) Existing *model* classes are organized as follow. We loosely defines the behaviors of any subclass via the base class `Model`. Meanwhile, we have implemented many widely-adopted *model*s. Users are encouraged to inherit the `Model` class and override some of its methods, so that they can use another kind of network structure, loss function, or even the optimization algorithm. ![](https://img.alicdn.com/tfs/TB1QoZuq.T1gK0jSZFhXXaAtVXa-820-176.png) ## A Comprehensive Suite EasyRL provides many popular RL algorithms (in both standalone and distributed setting). The following table gives a comparison between EasyRL and some impactful RL packages where o stands for existence of the corresponding functionality while x means no such one. |Package|​Rainbow|DDPG|PPO|ApeX|IMPALA|IL|ES|multi-learner|Total| | ------------- | ----- | ----- | ----- | ----- | ----- | ----- | ----- | ----- | ----- | |EasyRL|o|o|o|o|o|o|o|o|8| |[Dopamine](https://github.com/google/dopamine)|o|x|x|x|x|x|x|x|1| |[Ray RLLib](https://github.com/openai/baselines)|o|o|o|o|o|o|o|x|7| |[Baseline](https://github.com/openai/baselines)|o|o|o|x|x|o|x|x|4| |[Trfl](https://github.com/deepmind/trfl)|x|x|x|x|x|x|x|x|0| |[Coach](https://github.com/NervanaSystems/coach)|0|0|0|x|x|0|x|0|5| |[TensorForce](https://github.com/tensorforce/tensorforce)|​x|o|o|x|x|x|x|o|3| |[RLGraph](https://github.com/rlgraph/rlgraph)|​x|o|o|x|x|x|o|x|3| |[​Surreal](https://github.com/SurrealAI/surreal)|x|o|o|o|x|x|x|o|4| |[​​Uber-research/ape-x](https://github.com/uber-research/ape-x)|x|x|x|o|x|x|x|x|1| |[PARL]((https://github.com/PaddlePaddle/PARL))|x|o|o|x|o|x|o|o|5| |TensorFlow Agent|​x|o|o|x|x|o|x|x|3| ## Experiments We empirically evaluate the performance of EasyRL. Our experiment focuses on the throughput and the convergence rate of our Impala and ApeX implementations. We consider Pong as our environment and preprocesses each observation into an array with shape (42, 42, 4). ### Impala First, we study, how the throughput changes along the number of actors increases. As you can see from the following figure, once there are sufficient learners to consume the training samples without blocking the actors (i.e., the blue line corresponding to 16 learners), the throughput is almost linearly proportional to the number of actors. ![](https://img.alicdn.com/tfs/TB1S3Axq4v1gK0jSZFFXXb0sXXa-934-453.png) Then we look into the convergence rate which is particularly critical for distributed RL, as a high throughput may not ensure solving a problem quickly if the generated samples cannot be effectively exploited. The following figure surprisingly shows that with a 4-*learner*, 4-*buffer*, 32-*actor* setting (yellow line), our implementation can solve Pong within 3 minutes. ![](https://img.alicdn.com/tfs/TB1NHAxq1L2gK0jSZFmXXc7iXXa-1730-1016.png) We also present the wallclock time needed to reach 17+ scores for each setting. |Setting|​4a1m1|8a2m2l|8a1m1|16a2m2l|32a4m4l| | ----- | ----- | ----- | ----- | ----- | ----- | |Cost (sec.)|1940|765|525|400|160| From Ray RLLib's [results](https://ray.readthedocs.io/en/latest/rllib-algorithms.html#importance-weighted-actor-learner-architecture-impala), we see that, with two Nvidia V100 and 32 actors, they used around 360~420 seconds to reach above 17+ scores, which is outperformed by our *32a4m4l* setting and comparable with our *16a2m2l* setting. ### ApeX We carefully analyzed the relationships between the throughput of ApeX and the numbers of *actor*, *memory*, and *learner* processes. As an off-policy algorithm with replay buffers, the bottleneck is either the *memory* or the *learner*. As the following figure shows, once we had more than 2 *memory* processes, the only *learner* process becomes the bottleneck. ![](https://img.alicdn.com/tfs/TB1tn3uq9f2gK0jSZFPXXXsopXa-1300-728.png) We also observed the changes in convergence rate against different number of *memory* processes. Even though increasing the number of *memory* processes cannot increase the throughput drastically, the *4a8m1l* setting outperforms others by a considerable margin. When compared with Ray RLLib's [results](https://ray.readthedocs.io/en/latest/rllib-algorithms.html#distributed-prioritized-experience-replay-ape-x) which uses 32 actors to reach 17+ scores until around 3600 seconds, our *4a8m1l* setting surprisingly reduces around half of the time. ![](https://img.alicdn.com/tfs/TB1VVEuq8v0gK0jSZKbXXbK2FXa-1892-994.png) In a word, our design of actor-learner architecture is expressive for both on-policy and off-policy algorithms and enables us to easily develop some popular RL algorithms with comparable or better performance w.r.t. the SOTA RL packages. --- References - [Massively Parallel Methods for Deep Reinforcement Learning](https://arxiv.org/abs/1507.04296), Nair et al., 2015 - [Distributed Prioritized Experience Replay](https://arxiv.org/abs/1803.00933), Horgan et al., 2018 - [IMPALA: Scalable Distributed Deep-RL with Importance Weighted Actor-Learner Architectures](https://arxiv.org/abs/1802.01561), Espeholt et al., 2018 - [Proximal Policy Optimization Algorithms](https://arxiv.org/abs/1707.06347), Schulman et al., 2017
