# fc-comfyui **Repository Path**: py-service/fc-comfyui ## Basic Information - **Project Name**: fc-comfyui - **Description**: No description available - **Primary Language**: Unknown - **License**: Not specified - **Default Branch**: master - **Homepage**: None - **GVP Project**: No ## Statistics - **Stars**: 0 - **Forks**: 0 - **Created**: 2025-02-12 - **Last Updated**: 2025-02-12 ## Categories & Tags **Categories**: Uncategorized **Tags**: None ## README > 注:当前项目为 Serverless Devs 应用,由于应用中会存在需要初始化才可运行的变量(例如应用部署地区、函数名等等),所以**不推荐**直接 Clone 本仓库到本地进行部署或直接复制 s.yaml 使用,**强烈推荐**通过 `s init ${模版名称}` 的方法或应用中心进行初始化,详情可参考[部署 & 体验](#部署--体验) 。 # fc-comfyui 帮助文档

部署 ComfyUI 到阿里云函数计算 ## 前期准备 使用该项目,您需要有开通以下服务并拥有对应权限: | 服务 | 备注 | | --- | --- | | 函数计算 FC | 提供 CPU、GPU 等计算资源 | ## 部署 & 体验 - :fire: 通过 [Serverless 应用中心](https://fcnext.console.aliyun.com/applications/create?template=fc-comfyui) , [![Deploy with Severless Devs](https://img.alicdn.com/imgextra/i1/O1CN01w5RFbX1v45s8TIXPz_!!6000000006118-55-tps-95-28.svg)](https://fcnext.console.aliyun.com/applications/create?template=fc-comfyui) 该应用。 - 通过 [Serverless Devs Cli](https://www.serverless-devs.com/serverless-devs/install) 进行部署: - [安装 Serverless Devs Cli 开发者工具](https://www.serverless-devs.com/serverless-devs/install) ,并进行[授权信息配置](https://docs.serverless-devs.com/fc/config) ; - 初始化项目:`s init fc-comfyui -d fc-comfyui` - 进入项目,并进行项目部署:`cd fc-comfyui && s deploy -y` ## 案例介绍 本案例展示了如何将开源项目 [ComfyUI](https://github.com/comfyanonymous/ComfyUI) 部署到阿里云函数计算上,从而实现 ComfyUI 云端快速部署,实现文生图和图生图等 AIGC 创作活动。 ComfyUI 是一个为 Stable Diffusion 模型设计的,功能强大且高度模块化的图形用户界面(GUI)。它允许用户基于节点构建 AIGC 创作流程,非常适合那些想要摆脱传统编程方法、采用更直观操作流程的用户。该工具由 Comfyanonymous 在 2023 年 1 月创建,初衷是深入了解 Stable Diffusion 模型的运作机制。由于其易用性,Stable Diffusion 的开发者 Stability AI 也采用了 ComfyUI 进行内部测试,并聘请 Comfyanonymous 协助开发内部工具。目前,ComfyUI 在 Github 上的 Fork 数超过 3000,Star 数超过 30000。 Stable Diffusion 是一款由 CompVis、Stability AI 和 LAION 的研究人员及工程师共同开发的开源扩散模型,凭借其开源和高扩展性特点,赢得了全球众多 AIGC 爱好者的支持。据 Civital 模型网站统计,目前最热门的模型下载次数已超过 100 万,有超过 70 个模型下载次数超过 10 万,提供各种风格和功能的模型总数超过 12 万。 在国内,ComfyUI 也受到广泛欢迎。通过 ComfyUI 创作文生图的教程已多次在各大平台热搜榜和排行榜上出现,掀起一阵又一阵的热潮。通过 Serverless 开发平台,您只需要几步,就可以体验Comfyui,并享受Serverless 架构带来的降本提效的技术红利。 ## 使用流程 ### 基本文生图 1. 打开 ComfyUI,点击“Queue Prompt”开始。 2. 稍等片刻后,您将得到第一张图片。若需要恢复默认工作流,请使用“Load Default”,并记得保存您的工作流以避免丢失。 ![](https://img.alicdn.com/imgextra/i2/O1CN01nML52f1mIRwjP3sPy_!!6000000004931-0-tps-1226-889.jpg) ### 挂载 NAS 和使用自定义节点 为使用自定义模型和节点,需先绑定文件管理 NAS。通过函数控制台的网络配置,绑定专有网络/交换机。若无相关资源,需先创建。 1. **进入函数计算控制台**:通过应用详情,跳转到函数控制台 ![](https://img.alicdn.com/imgextra/i2/O1CN01LQQyBF1jPN5LrmrYj_!!6000000004540-0-tps-1078-985.jpg) 2. **网络配置**:完成专有网络和交换机配置(如果没有相关资源,您可以点击 “创建新的 VPC”、“创建新的交换机”,前往相关产品创建资源。) ![](https://img.alicdn.com/imgextra/i4/O1CN01OPYefo1LCxZaaN2P7_!!6000000001264-0-tps-1359-897.jpg) 3. **NAS 挂载**:进行 NAS 挂载设置,绑定对应专有网络、交换机下存在的 NAS 挂载点。 函数本地目录请填写 `/mnt/auto` 或 `/mnt/auto/comfyui`;如果您曾经在当前 NAS 中使用过 Stable Diffusion 应用,可以考虑将远端目录设置为 `/fc-stable-diffusion-plus`,本地目录设置为 `/mnt/auto`。 大模型对文件 IO 要求较高,建议创建 **通用性能型 NAS 实例**,NAS 会根据存储的文件大小进行计费,不通规格的 NAS 计费单价不一致,请参考相关文档。 ![](https://img.alicdn.com/imgextra/i3/O1CN01JM4qq427roSToC5GI_!!6000000007851-0-tps-1424-1061.jpg) ### 进入 ComfyUI 终端 函数计算支持登入运行中的函数实例,您可以在终端中执行需要的操作(如手动安装自定义节点、依赖等) 注意,在 Serverless 环境下,您的所有改动都不会真正保存,您需要将改动的文件放置在 NAS 中以持久化 ![](https://img.alicdn.com/imgextra/i2/O1CN01p2zERS21sNFaFIFlK_!!6000000007040-0-tps-1522-846.jpg) ### 文件上传及下载 借助 NAS 文件浏览器功能,您可以方便地进行云上文件管理 ![](https://img.alicdn.com/imgextra/i1/O1CN01qBoRgE1Us1czB7Doi_!!6000000002572-0-tps-1533-574.jpg) ### 安装自定义节点 以安装中文翻译插件 [AIGODLIKE-COMFYUI-TRANSLATION](https://github.com/AIGODLIKE/AIGODLIKE-COMFYUI-TRANSLATION) 为例,使用 ComfyUI-Manager 进行安装。 ![](https://img.alicdn.com/imgextra/i1/O1CN01cpHWUJ1WQfCKAZoVB_!!6000000002783-0-tps-1339-893.jpg) 搜索要安装的节点名称,点击 install ![](https://img.alicdn.com/imgextra/i2/O1CN014lNLJe1lebUP6PYxn_!!6000000004844-0-tps-1368-270.jpg) **注意** - 安装过程中请不要关闭页面。安装完成后,除去需要点击 restart 外,还需要刷新页面 - 安装过程中可能会访问 Github、HuggingFace 等境外网站,由于网络问题可能会导致访问较慢或失败,您可以在网络上检索如何解决类似的问题。 ) ### 加速依赖下载 使用国内 pypi 镜像加速依赖下载。编辑 `/mnt/auto/comfyui/root/.pip/pip.conf` 文件,设置镜像源为阿里云。 ``` [global] index-url = http://mirrors.aliyun.com/pypi/simple/ [install] trusted-host = https://mirrors.aliyun.com ``` ### 解决缺失节点的问题 导入第三方的工作流,可能会遇到节点不存在的报错,可以借助 ComfyUI Manager 安装缺失的节点 ![](https://img.alicdn.com/imgextra/i4/O1CN015Ovmyr1VPSXWcUvit_!!6000000002645-0-tps-840-442.jpg) ![](https://img.alicdn.com/imgextra/i2/O1CN01aSPkBh22XatVsvQrX_!!6000000007130-0-tps-1363-886.jpg) 部分节点升级后,可能仍然提示未安装,可参考 [ComfyUI Guides](https://comfyui-guides.runcomfy.com/) 的相关讨论解决。 > How to fix: A red node for “IPAdapterApply”? > You must already follow our instructions on how to install IP-Adapter V2, and it should all working properly. Now you see a red node for “IPAdapterApply”. > > That is because you are working on a workflow with IPAdapter V1 node, simply just replace the V1 node with the V2 ones or uninstall IPA v2 and rollback to V1 if you feel like it. ### ControlNet 的使用 展示了使用 ControlNet 对比直接输出的差异,提供了工作流 JSON 示例以及对应模型的下载说明。 ![](https://img.alicdn.com/imgextra/i4/O1CN01R8bT461O1STVjkkfy_!!6000000001645-0-tps-2090-1062.jpg)

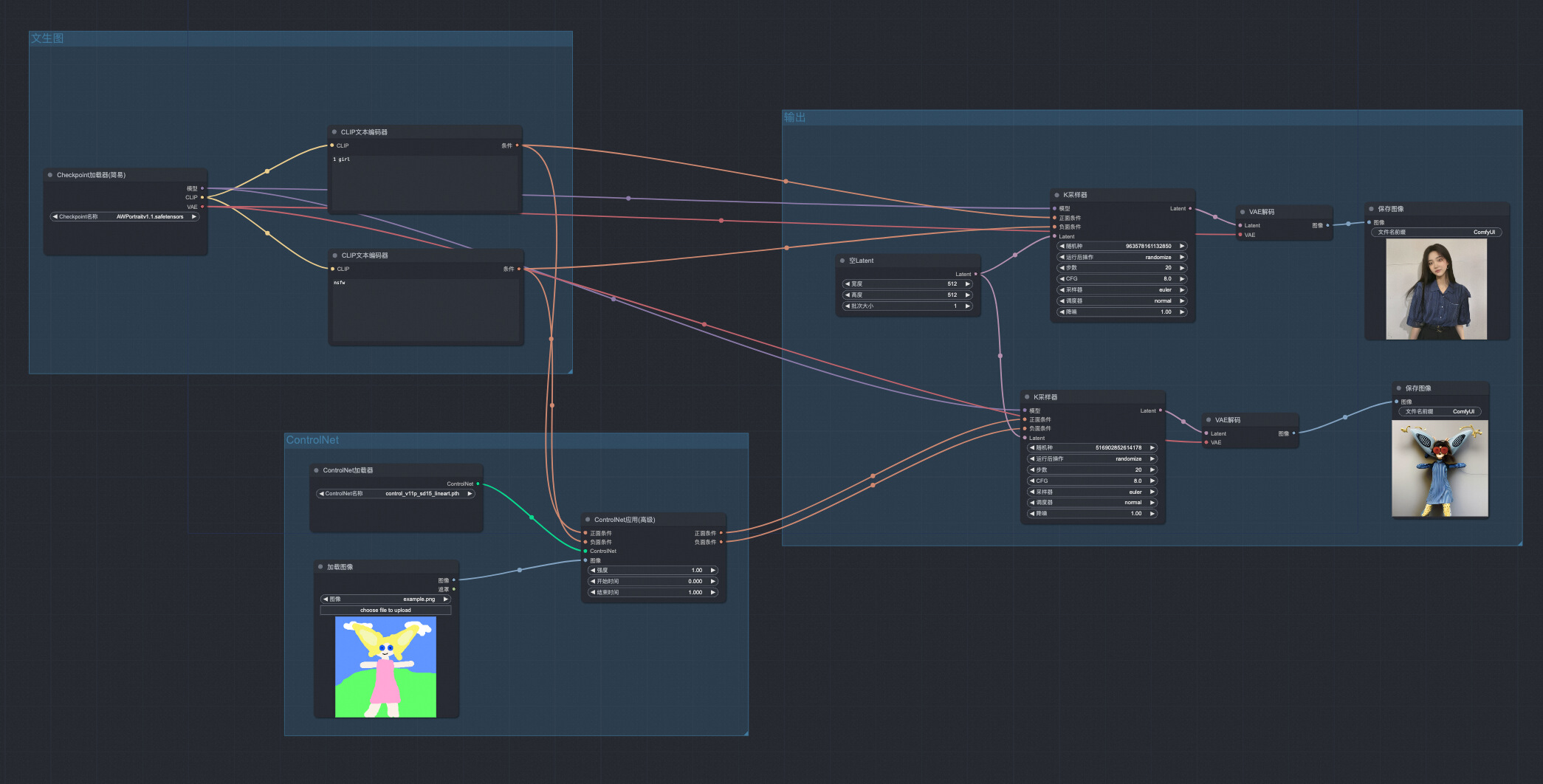

工作流文件 ```json { "last_node_id": 29, "last_link_id": 54, "nodes": [ { "id": 16, "type": "ControlNetLoader", "pos": [ 264.88020036191443, 1201.535094958983 ], "size": [ 376.46875, 118.875 ], "flags": {}, "order": 0, "mode": 0, "outputs": [ { "name": "CONTROL_NET", "type": "CONTROL_NET", "links": [ 35 ], "shape": 3, "label": "ControlNet", "slot_index": 0 } ], "properties": { "Node name for S&R": "ControlNetLoader" }, "widgets_values": [ "control_v11p_sd15_lineart.pth" ] }, { "id": 23, "type": "ControlNetApplyAdvanced", "pos": [ 856.880200361914, 1308.535094958983 ], "size": { "0": 315, "1": 166 }, "flags": {}, "order": 6, "mode": 0, "inputs": [ { "name": "positive", "type": "CONDITIONING", "link": 39, "label": "正面条件" }, { "name": "negative", "type": "CONDITIONING", "link": 40, "label": "负面条件" }, { "name": "control_net", "type": "CONTROL_NET", "link": 35, "label": "ControlNet" }, { "name": "image", "type": "IMAGE", "link": 36, "label": "图像" } ], "outputs": [ { "name": "positive", "type": "CONDITIONING", "links": [ 41 ], "shape": 3, "label": "正面条件", "slot_index": 0 }, { "name": "negative", "type": "CONDITIONING", "links": [ 42 ], "shape": 3, "label": "负面条件", "slot_index": 1 } ], "properties": { "Node name for S&R": "ControlNetApplyAdvanced" }, "widgets_values": [ 1, 0, 1 ] }, { "id": 7, "type": "CLIPTextEncode", "pos": [ 305.4482288105471, 733.0172076020683 ], "size": { "0": 425.27801513671875, "1": 180.6060791015625 }, "flags": {}, "order": 5, "mode": 0, "inputs": [ { "name": "clip", "type": "CLIP", "link": 5, "label": "CLIP" } ], "outputs": [ { "name": "CONDITIONING", "type": "CONDITIONING", "links": [ 40, 45 ], "slot_index": 0, "label": "条件" } ], "properties": { "Node name for S&R": "CLIPTextEncode" }, "widgets_values": [ "nsfw" ] }, { "id": 3, "type": "KSampler", "pos": [ 1815.3138964843754, 1041.130867919922 ], "size": { "0": 315, "1": 262 }, "flags": {}, "order": 8, "mode": 0, "inputs": [ { "name": "model", "type": "MODEL", "link": 1, "label": "模型" }, { "name": "positive", "type": "CONDITIONING", "link": 41, "label": "正面条件" }, { "name": "negative", "type": "CONDITIONING", "link": 42, "label": "负面条件" }, { "name": "latent_image", "type": "LATENT", "link": 32, "label": "Latent", "slot_index": 3 } ], "outputs": [ { "name": "LATENT", "type": "LATENT", "links": [ 16 ], "slot_index": 0, "label": "Latent" } ], "properties": { "Node name for S&R": "KSampler" }, "widgets_values": [ 516902852614178, "randomize", 20, 8, "euler", "normal", 1 ] }, { "id": 8, "type": "VAEDecode", "pos": [ 2211.3138964843743, 1091.130867919922 ], "size": { "0": 210, "1": 46 }, "flags": {}, "order": 10, "mode": 0, "inputs": [ { "name": "samples", "type": "LATENT", "link": 16, "label": "Latent" }, { "name": "vae", "type": "VAE", "link": 43, "label": "VAE" } ], "outputs": [ { "name": "IMAGE", "type": "IMAGE", "links": [ 9 ], "slot_index": 0, "label": "图像" } ], "properties": { "Node name for S&R": "VAEDecode" } }, { "id": 25, "type": "VAEDecode", "pos": [ 2285.340647460937, 637.991402648926 ], "size": { "0": 210, "1": 46 }, "flags": {}, "order": 9, "mode": 0, "inputs": [ { "name": "samples", "type": "LATENT", "link": 48, "label": "Latent" }, { "name": "vae", "type": "VAE", "link": 50, "label": "VAE" } ], "outputs": [ { "name": "IMAGE", "type": "IMAGE", "links": [ 49 ], "shape": 3, "label": "图像", "slot_index": 0 } ], "properties": { "Node name for S&R": "VAEDecode" } }, { "id": 26, "type": "SaveImage", "pos": [ 2566.3138964843743, 631.130867919922 ], "size": [ 315, 270.00002098083496 ], "flags": {}, "order": 11, "mode": 0, "inputs": [ { "name": "images", "type": "IMAGE", "link": 49, "label": "图像" } ], "properties": {}, "widgets_values": [ "ComfyUI" ] }, { "id": 9, "type": "SaveImage", "pos": [ 2626.3138964843743, 1022.1308679199219 ], "size": [ 210, 270.00002002716064 ], "flags": {}, "order": 12, "mode": 0, "inputs": [ { "name": "images", "type": "IMAGE", "link": 9, "label": "图像" } ], "properties": {}, "widgets_values": [ "ComfyUI" ] }, { "id": 6, "type": "CLIPTextEncode", "pos": [ 304.118812936719, 462.9874991923831 ], "size": { "0": 422.84503173828125, "1": 164.31304931640625 }, "flags": {}, "order": 4, "mode": 0, "inputs": [ { "name": "clip", "type": "CLIP", "link": 3, "label": "CLIP" } ], "outputs": [ { "name": "CONDITIONING", "type": "CONDITIONING", "links": [ 39, 44 ], "slot_index": 0, "label": "条件" } ], "properties": { "Node name for S&R": "CLIPTextEncode" }, "widgets_values": [ "1 girl" ] }, { "id": 24, "type": "KSampler", "pos": [ 1880.3138964843754, 601.130867919922 ], "size": { "0": 315, "1": 262 }, "flags": {}, "order": 7, "mode": 0, "inputs": [ { "name": "model", "type": "MODEL", "link": 46, "label": "模型" }, { "name": "positive", "type": "CONDITIONING", "link": 44, "label": "正面条件" }, { "name": "negative", "type": "CONDITIONING", "link": 45, "label": "负面条件" }, { "name": "latent_image", "type": "LATENT", "link": 54, "label": "Latent", "slot_index": 3 } ], "outputs": [ { "name": "LATENT", "type": "LATENT", "links": [ 48 ], "shape": 3, "label": "Latent", "slot_index": 0 } ], "properties": { "Node name for S&R": "KSampler" }, "widgets_values": [ 963578161132850, "randomize", 20, 8, "euler", "normal", 1 ] }, { "id": 5, "type": "EmptyLatentImage", "pos": [ 1412.3138964843754, 744.130867919922 ], "size": { "0": 315, "1": 106 }, "flags": {}, "order": 1, "mode": 0, "outputs": [ { "name": "LATENT", "type": "LATENT", "links": [ 32, 54 ], "slot_index": 0, "label": "Latent" } ], "properties": { "Node name for S&R": "EmptyLatentImage" }, "widgets_values": [ 512, 512, 1 ] }, { "id": 12, "type": "LoadImage", "pos": [ 273.88020036191443, 1411.535094958983 ], "size": { "0": 315, "1": 314 }, "flags": {}, "order": 2, "mode": 0, "outputs": [ { "name": "IMAGE", "type": "IMAGE", "links": [ 36 ], "shape": 3, "label": "图像", "slot_index": 0 }, { "name": "MASK", "type": "MASK", "links": null, "shape": 3, "label": "遮罩" } ], "properties": { "Node name for S&R": "LoadImage" }, "widgets_values": [ "example.png", "image" ] }, { "id": 4, "type": "CheckpointLoaderSimple", "pos": [ -315.8811870632813, 556.9874991923831 ], "size": { "0": 356.0684509277344, "1": 159.5682373046875 }, "flags": {}, "order": 3, "mode": 0, "outputs": [ { "name": "MODEL", "type": "MODEL", "links": [ 1, 46 ], "slot_index": 0, "label": "模型" }, { "name": "CLIP", "type": "CLIP", "links": [ 3, 5 ], "slot_index": 1, "label": "CLIP" }, { "name": "VAE", "type": "VAE", "links": [ 43, 50 ], "slot_index": 2, "label": "VAE" } ], "properties": { "Node name for S&R": "CheckpointLoaderSimple" }, "widgets_values": [ "AWPortraitv1.1.safetensors" ] } ], "links": [ [ 1, 4, 0, 3, 0, "MODEL" ], [ 3, 4, 1, 6, 0, "CLIP" ], [ 5, 4, 1, 7, 0, "CLIP" ], [ 9, 8, 0, 9, 0, "IMAGE" ], [ 16, 3, 0, 8, 0, "LATENT" ], [ 32, 5, 0, 3, 3, "LATENT" ], [ 35, 16, 0, 23, 2, "CONTROL_NET" ], [ 36, 12, 0, 23, 3, "IMAGE" ], [ 39, 6, 0, 23, 0, "CONDITIONING" ], [ 40, 7, 0, 23, 1, "CONDITIONING" ], [ 41, 23, 0, 3, 1, "CONDITIONING" ], [ 42, 23, 1, 3, 2, "CONDITIONING" ], [ 43, 4, 2, 8, 1, "VAE" ], [ 44, 6, 0, 24, 1, "CONDITIONING" ], [ 45, 7, 0, 24, 2, "CONDITIONING" ], [ 46, 4, 0, 24, 0, "MODEL" ], [ 48, 24, 0, 25, 0, "LATENT" ], [ 49, 25, 0, 26, 0, "IMAGE" ], [ 50, 4, 2, 25, 1, "VAE" ], [ 54, 5, 0, 24, 3, "LATENT" ] ], "groups": [ { "title": "ControlNet", "bounding": [ 210, 1105, 1012, 660 ], "color": "#3f789e", "font_size": 24 }, { "title": "文生图", "bounding": [ -347, 228, 1185, 747 ], "color": "#3f789e", "font_size": 24 }, { "title": "输出", "bounding": [ 1296, 400, 1615, 951 ], "color": "#3f789e", "font_size": 24 } ], "config": {}, "extra": {}, "version": 0.4 } ```
## 注意事项 fc-comfyui 是一个第三方工具,旨在帮助用户将 ComfyUI 项目部署到阿里云函数计算服务。请注意,该工具与 ComfyUI 项目及阿里云官方无直接联系。 - **第三方链接**:本工具提供的第三方网站或服务链接仅为用户方便,开发者对这些内容、隐私政策或操作不承担责任,亦不代表认可。 - **社区同步**:ComfyUI 为活跃的开源社区项目,功能丰富且更新频繁,如果您希望使用更新版本的 ComfyUI,可自行基于 Dockerfile 文件进行构建。 - **费用提示**:在阿里云部署 ComfyUI 可能产生费用,请参考阿里云的计费文档。若需持久化存储(如模型、节点),还需开通文件管理 NAS,可能产生额外费用。 - **许可协议**:使用 ComfyUI 项目需遵守其开源许可协议。使用前,请确保已阅读并理解 ComfyUI 项目及相关第三方工具的许可协议。 - **遵守服务条款**:部署至阿里云函数计算服务,需同意阿里云服务条款和使用政策。 - **无担保声明**:本工具“按现状”提供,不包含任何形式的担保。使用风险由用户自担,开发者不负责任何直接或间接损害。 - **资源消耗**:ComfyUI 页面建立长连接请求,**持续消耗计算资源**。为避免不必要费用,请不使用时关闭所有页面。 使用本工具即表示您已理解并同意以上声明。若不同意,请勿使用。 ## 开发者社区 您如果有关于错误的反馈或者未来的期待,您可以在 [Serverless Devs repo Issues](https://github.com/serverless-devs/serverless-devs/issues) 中进行反馈和交流。如果您想要加入我们的讨论组或者了解 FC 组件的最新动态,您可以通过以下渠道进行:

| | | | | --------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------- | |

微信公众号:`serverless`
|
微信小助手:`xiaojiangwh`
|
钉钉交流群:`33947367`
|
